Fencing aka. STONITH. More...

#include <dlfcn.h>
#include <errno.h>
#include <stdbool.h>
#include <stdint.h>
#include <time.h>

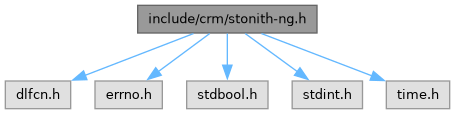

Include dependency graph for stonith-ng.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	stonith_key_value_s
	Key-value pair list node. More...

struct	stonith_history_s
	Fencing history entry. More...

struct	stonith_event_s
	Fencing event. More...

struct	stonith_callback_data_s
	Data for an asynchronous fencing request callback. More...

struct	stonith_api_operations_s
	Fencer API operations. More...

struct	stonith_s
	Fencer API connection object. More...

Macros
#define	STONITH_LIBRARY "libstonithd.so.56"

Typedefs
typedef struct stonith_key_value_s	stonith_key_value_t
	Key-value pair list node.

typedef struct stonith_history_s	stonith_history_t
	Fencing history entry.

typedef struct stonith_s	stonith_t

typedef struct stonith_event_s	stonith_event_t
	Fencing event.

typedef struct stonith_callback_data_s	stonith_callback_data_t
	Data for an asynchronous fencing request callback.

typedef struct stonith_api_operations_s	stonith_api_operations_t
	Fencer API operations.

typedef int(*	st_api_kick_fn) (int nodeid, const char *uname, int timeout, bool off)

typedef time_t(*	st_api_time_fn) (int nodeid, const char *uname, bool in_progress)

Enumerations
enum	stonith_state { stonith_connected_command , stonith_connected_query , stonith_disconnected }
	Fencer API connection state. More...

enum	stonith_call_options { st_opt_none = 0 , st_opt_verbose = (1 << 0) , st_opt_allow_self_fencing = (1 << 1) , st_opt_allow_suicide = st_opt_allow_self_fencing , st_opt_manual_ack = (1 << 3) , st_opt_discard_reply = (1 << 4) , st_opt_topology = (1 << 6) , st_opt_scope_local = (1 << 8) , st_opt_cs_nodeid = (1 << 9) , st_opt_sync_call = (1 << 12) , st_opt_timeout_updates = (1 << 13) , st_opt_report_only_success = (1 << 14) , st_opt_cleanup = (1 << 19) , st_opt_broadcast = (1 << 20) }
	Flags that can be set in call options for API requests. More...

enum	op_state { st_query , st_exec , st_done , st_duplicate , st_failed }
	Fencing operation states. More...

enum	stonith_namespace { st_namespace_invalid , st_namespace_any , st_namespace_internal , st_namespace_rhcs , st_namespace_lha }
	Supported fence agent interface standards. More...

Functions
int	stonith_api_kick (uint32_t nodeid, const char *uname, int timeout, bool off)

time_t	stonith_api_time (uint32_t nodeid, const char *uname, bool in_progress)

stonith_t *	stonith_api_new (void)

void	stonith_api_delete (stonith_t *stonith)

void	stonith_dump_pending_callbacks (stonith_t *stonith)

bool	stonith_dispatch (stonith_t *stonith_api)

stonith_key_value_t *	stonith_key_value_add (stonith_key_value_t kvp, const char key, const char *value)

void	stonith_key_value_freeall (stonith_key_value_t *head, int keys, int values)

void	stonith_history_free (stonith_history_t *head)

int	stonith_api_connect_retry (stonith_t st, const char name, int max_attempts)

const char *	stonith_op_state_str (enum op_state state)

bool	stonith_agent_exists (const char *agent, int timeout)

const char *	stonith_action_str (const char *action)

enum stonith_namespace	stonith_text2namespace (const char *namespace_s)

const char *	stonith_namespace2text (enum stonith_namespace st_namespace)

enum stonith_namespace	stonith_get_namespace (const char agent, const char namespace_s)

Detailed Description

Fencing aka. STONITH.

Definition in file stonith-ng.h.

Macro Definition Documentation

◆ STONITH_LIBRARY

#define STONITH_LIBRARY "libstonithd.so.56"

Definition at line 714 of file stonith-ng.h.

Typedef Documentation

◆ st_api_kick_fn

typedef int(* st_api_kick_fn) (int nodeid, const char *uname, int timeout, bool off)

Definition at line 717 of file stonith-ng.h.

◆ st_api_time_fn

typedef time_t(* st_api_time_fn) (int nodeid, const char *uname, bool in_progress)

Definition at line 718 of file stonith-ng.h.

◆ stonith_api_operations_t

typedef struct stonith_api_operations_s stonith_api_operations_t

Fencer API operations.

Deprecated: Use appropriate functions in libpacemaker instead

◆ stonith_callback_data_t

typedef struct stonith_callback_data_s stonith_callback_data_t

Data for an asynchronous fencing request callback.

Deprecated: Do not use

◆ stonith_event_t

typedef struct stonith_event_s stonith_event_t

Fencing event.

Deprecated: Do not use

◆ stonith_history_t

typedef struct stonith_history_s stonith_history_t

Fencing history entry.

Deprecated: Do not use

◆ stonith_key_value_t

typedef struct stonith_key_value_s stonith_key_value_t

Key-value pair list node.

Deprecated: Do not use

◆ stonith_t

typedef struct stonith_s stonith_t

Definition at line 187 of file stonith-ng.h.

Enumeration Type Documentation

◆ op_state

enum op_state

Fencing operation states.

Deprecated: Do not use

Enumerator
st_query
st_exec	Deprecated Do not use
st_done	Deprecated Do not use
st_duplicate	Deprecated Do not use
st_failed	Deprecated Do not use

Definition at line 125 of file stonith-ng.h.

◆ stonith_call_options

enum stonith_call_options

Flags that can be set in call options for API requests.

Deprecated: Do not use

Enumerator
st_opt_none	Deprecated Do not use
st_opt_verbose	Deprecated Do not use
st_opt_allow_self_fencing	Deprecated Do not use
st_opt_allow_suicide	Deprecated Do not use
st_opt_manual_ack	Deprecated Do not use
st_opt_discard_reply	Deprecated Do not use
st_opt_topology	Deprecated Do not use
st_opt_scope_local	Deprecated Do not use
st_opt_cs_nodeid	Deprecated Do not use
st_opt_sync_call	Deprecated Do not use
st_opt_timeout_updates	Deprecated Do not use
st_opt_report_only_success	Deprecated Do not use
st_opt_cleanup	Deprecated Do not use
st_opt_broadcast	Deprecated Do not use

Definition at line 56 of file stonith-ng.h.

◆ stonith_namespace

enum stonith_namespace

Supported fence agent interface standards.

Deprecated: Do not use

Enumerator
st_namespace_invalid
st_namespace_any	Deprecated Do not use
st_namespace_internal	Deprecated Do not use
st_namespace_rhcs	Deprecated Do not use
st_namespace_lha	Deprecated Do not use

Definition at line 138 of file stonith-ng.h.

◆ stonith_state

enum stonith_state

Fencer API connection state.

Deprecated: Do not use

Enumerator
stonith_connected_command
stonith_connected_query
stonith_disconnected

Definition at line 44 of file stonith-ng.h.

Function Documentation

◆ stonith_action_str()

const char * stonith_action_str ( const char * action )

Deprecated: Do not use

Definition at line 2909 of file st_client.c.

◆ stonith_agent_exists()

bool stonith_agent_exists	(	const char *	agent,
		int	timeout )

Deprecated: Do not use

Definition at line 2901 of file st_client.c.

◆ stonith_api_connect_retry()

int stonith_api_connect_retry	(	stonith_t *	st,
		const char *	name,
		int	max_attempts )

Deprecated: Do not use

Definition at line 2885 of file st_client.c.

◆ stonith_api_delete()

void stonith_api_delete ( stonith_t * stonith )

Deprecated: Use appropriate functions in libpacemaker

Definition at line 2819 of file st_client.c.

◆ stonith_api_kick()

int stonith_api_kick	(	uint32_t	nodeid,
		const char *	uname,
		int	timeout,
		bool	off )

Definition at line 2053 of file st_client.c.

◆ stonith_api_new()

stonith_t * stonith_api_new ( void )

Deprecated: Use appropriate functions in libpacemaker

Definition at line 2811 of file st_client.c.

◆ stonith_api_time()

time_t stonith_api_time	(	uint32_t	nodeid,
		const char *	uname,
		bool	in_progress )

Definition at line 2095 of file st_client.c.

◆ stonith_dispatch()

bool stonith_dispatch ( stonith_t * stonith_api )

Deprecated: Do not use

Definition at line 2850 of file st_client.c.

◆ stonith_dump_pending_callbacks()

void stonith_dump_pending_callbacks ( stonith_t * stonith )

Deprecated: Do not use

Definition at line 2836 of file st_client.c.

◆ stonith_get_namespace()

enum stonith_namespace stonith_get_namespace	(	const char *	agent,
		const char *	namespace_s )

Deprecated: Do not use

Definition at line 2942 of file st_client.c.

◆ stonith_history_free()

void stonith_history_free ( stonith_history_t * head )

Deprecated: Do not use

Definition at line 2876 of file st_client.c.

◆ stonith_key_value_add()

stonith_key_value_t * stonith_key_value_add	(	stonith_key_value_t *	kvp,
		const char *	key,
		const char *	value )

Deprecated: Do not use

Definition at line 2859 of file st_client.c.

◆ stonith_key_value_freeall()

void stonith_key_value_freeall	(	stonith_key_value_t *	head,
		int	keys,
		int	values )

Deprecated: Do not use

Definition at line 2868 of file st_client.c.

◆ stonith_namespace2text()

const char * stonith_namespace2text ( enum stonith_namespace st_namespace )

Deprecated: Do not use

Definition at line 2933 of file st_client.c.

◆ stonith_op_state_str()

const char * stonith_op_state_str ( enum op_state state )

Deprecated: Do not use

Definition at line 2893 of file st_client.c.

◆ stonith_text2namespace()

enum stonith_namespace stonith_text2namespace ( const char * namespace_s )

Deprecated: Do not use

Definition at line 2925 of file st_client.c.
