cpg.c File Reference

#include <crm_internal.h>
#include <arpa/inet.h>
#include <inttypes.h>
#include <netdb.h>
#include <netinet/in.h>
#include <stdbool.h>
#include <stdint.h>
#include <sys/socket.h>
#include <sys/types.h>
#include <sys/utsname.h>
#include <bzlib.h>
#include <corosync/corodefs.h>
#include <corosync/corotypes.h>
#include <corosync/hdb.h>
#include <corosync/cpg.h>
#include <qb/qbipc_common.h>
#include <qb/qbipcc.h>
#include <qb/qbutil.h>
#include <crm/cluster/internal.h>
#include <crm/common/ipc.h>
#include <crm/common/ipc_internal.h>
#include <crm/common/mainloop.h>
#include <crm/common/xml.h>
#include "crmcluster_private.h"

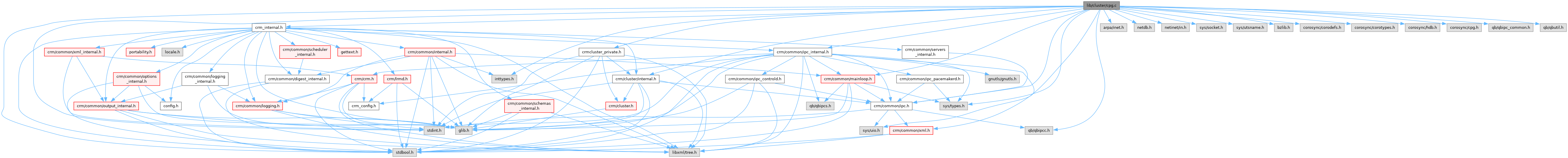

Include dependency graph for cpg.c:

Go to the source code of this file.

Macros
#define	msg_data_len(msg)
#define	cs_repeat(rc, counter, max, code)
#define	CS_SEND_MAX   200

Typedefs
typedef struct pcmk__cpg_host_s	pcmk__cpg_host_t
typedef struct pcmk__cpg_msg_s	pcmk__cpg_msg_t

Functions
struct pcmk__cpg_host_s	__attribute__ ((packed))
struct qb_ipc_response_header header	__attribute__ ((aligned(8)))
uint32_t	pcmk__cpg_local_nodeid (cpg_handle_t handle)
char *	pcmk__cpg_message_data (cpg_handle_t handle, uint32_t sender_id, uint32_t pid, void *content, const char **from)
void	pcmk__cpg_confchg_cb (cpg_handle_t handle, const struct cpg_name *group_name, const struct cpg_address *member_list, size_t member_list_entries, const struct cpg_address *left_list, size_t left_list_entries, const struct cpg_address *joined_list, size_t joined_list_entries)
int	pcmk_cpg_set_deliver_fn (pcmk_cluster_t *cluster, cpg_deliver_fn_t fn)
	Set the CPG deliver callback function for a cluster object.
int	pcmk_cpg_set_confchg_fn (pcmk_cluster_t *cluster, cpg_confchg_fn_t fn)
	Set the CPG config change callback function for a cluster object.
int	pcmk__cpg_connect (pcmk_cluster_t *cluster)
	Connect to Corosync CPG.
void	pcmk__cpg_disconnect (pcmk_cluster_t *cluster)
bool	pcmk__cpg_send_xml (const xmlNode *msg, const pcmk__node_status_t *node, enum pcmk_ipc_server dest)

Variables
uint32_t	id
uint32_t	pid
gboolean	local
enum pcmk_ipc_server	type
uint32_t	size
char	uname [MAX_NAME]
gboolean	is_compressed
pcmk__cpg_host_t	host
pcmk__cpg_host_t	sender
uint32_t	compressed_size
char	data [0]

Macro Definition Documentation

cs_repeat

#define cs_repeat	(		rc,
			counter,
			max,
			code )

Value:

        do {                          \
        rc = code;                                                      \
        if ((rc == CS_ERR_TRY_AGAIN) || (rc == CS_ERR_QUEUE_FULL)) {    \
            counter++;                                                  \
            crm_debug("Retrying operation after %ds", counter);         \
            sleep(counter);                                             \
        } else {                                                        \
            break;                                                      \
        }                                                               \
    } while (counter < max)

Definition at line 86 of file cpg.c.

CS_SEND_MAX

#define CS_SEND_MAX   200

Definition at line 196 of file cpg.c.

msg_data_len

#define msg_data_len

(

msg

)

Value:

(msg->is_compressed?msg->compressed_size:msg->size)

Definition at line 84 of file cpg.c.

Typedef Documentation

pcmk__cpg_host_t

typedef struct pcmk__cpg_host_s pcmk__cpg_host_t

Definition at line 63 of file cpg.c.

pcmk__cpg_msg_t

typedef struct pcmk__cpg_msg_s pcmk__cpg_msg_t

Definition at line 80 of file cpg.c.

Function Documentation

__attribute__() [1/2]

struct qb_ipc_response_header header __attribute__::__attribute__

(

(aligned(8))

)

__attribute__() [2/2]

struct pcmk__cpg_host_s __attribute__

(

(packed)

)

pcmk__cpg_confchg_cb()

void pcmk__cpg_confchg_cb	(	cpg_handle_t	handle,
		const struct cpg_name *	group_name,
		const struct cpg_address *	member_list,
		size_t	member_list_entries,
		const struct cpg_address *	left_list,
		size_t	left_list_entries,
		const struct cpg_address *	joined_list,
		size_t	joined_list_entries )

Definition at line 638 of file cpg.c.

pcmk__cpg_connect()

int pcmk__cpg_connect

(

pcmk_cluster_t *

cluster

)

Connect to Corosync CPG.

Parameters

[in,out]

cluster

Initialized cluster object to connect

Returns

Standard Pacemaker return code

Definition at line 779 of file cpg.c.

pcmk__cpg_disconnect()

void pcmk__cpg_disconnect

(

pcmk_cluster_t *

cluster

)

Definition at line 891 of file cpg.c.

pcmk__cpg_local_nodeid()

uint32_t pcmk__cpg_local_nodeid

(

cpg_handle_t

handle

)

Definition at line 106 of file cpg.c.

pcmk__cpg_message_data()

char * pcmk__cpg_message_data	(	cpg_handle_t	handle,
		uint32_t	sender_id,
		uint32_t	pid,
		void *	content,
		const char **	from )

Definition at line 395 of file cpg.c.

pcmk__cpg_send_xml()

bool pcmk__cpg_send_xml	(	const xmlNode *	msg,
		const pcmk__node_status_t *	node,
		enum pcmk_ipc_server	dest )

Definition at line 1039 of file cpg.c.

pcmk_cpg_set_confchg_fn()

int pcmk_cpg_set_confchg_fn	(	pcmk_cluster_t *	cluster,
		cpg_confchg_fn_t	fn )

Set the CPG config change callback function for a cluster object.

Parameters

[in,out]	cluster	Cluster object
[in]	fn	Configuration change callback function to set

Returns

Standard Pacemaker return code

Definition at line 762 of file cpg.c.

pcmk_cpg_set_deliver_fn()

int pcmk_cpg_set_deliver_fn	(	pcmk_cluster_t *	cluster,
		cpg_deliver_fn_t	fn )

Set the CPG deliver callback function for a cluster object.

Parameters

[in,out]	cluster	Cluster object
[in]	fn	Deliver callback function to set

Returns

Standard Pacemaker return code

Definition at line 744 of file cpg.c.

Variable Documentation

compressed_size

uint32_t compressed_size

Definition at line 8 of file cpg.c.

data

char data[0]

Definition at line 10 of file cpg.c.

host

pcmk__cpg_host_t host

Definition at line 4 of file cpg.c.

id

uint32_t id

Definition at line 0 of file cpg.c.

is_compressed

gboolean is_compressed

Definition at line 2 of file cpg.c.

local

gboolean local

Definition at line 2 of file cpg.c.

pid

uint32_t pid

Definition at line 1 of file cpg.c.

sender

pcmk__cpg_host_t sender

Definition at line 5 of file cpg.c.

size

uint32_t size

Definition at line 4 of file cpg.c.

type

enum pcmk_ipc_server type

Definition at line 3 of file cpg.c.

uname

char uname[MAX_NAME]

Definition at line 5 of file cpg.c.
