Data types for Cluster Information Base access. More...

#include <glib.h>
#include <libxml/tree.h>
#include <crm/common/ipc.h>
#include <crm/common/xml.h>

Include dependency graph for cib_types.h:

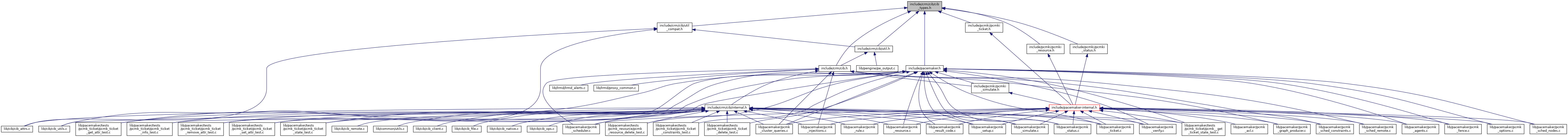

This graph shows which files directly or indirectly include this file:

Data Structures
struct	cib_api_operations_s

struct	cib_s

Typedefs
typedef struct cib_s	cib_t

typedef struct cib_api_operations_s	cib_api_operations_t

Enumerations
enum	cib_variant { cib_undefined = 0, cib_native = 1, cib_file = 2, cib_remote = 3, cib_database = 4 }

enum	cib_state { cib_connected_command, cib_connected_query, cib_disconnected }

enum	cib_conn_type { cib_command, cib_query, cib_no_connection, cib_command_nonblocking }

enum	cib_call_options { cib_none = 0, cib_verbose = (1 << 0), cib_xpath = (1 << 1), cib_multiple = (1 << 2), cib_can_create = (1 << 3), cib_discard_reply = (1 << 4), cib_no_children = (1 << 5), cib_xpath_address = (1 << 6), cib_mixed_update = (1 << 7), cib_scope_local = (1 << 8), cib_dryrun = (1 << 9), cib_transaction = (1 << 10), cib_score_update = (1 << 11), cib_sync_call = (1 << 12), cib_no_mtime = (1 << 13), cib_zero_copy = (1 << 14), cib_inhibit_notify = (1 << 16), cib_quorum_override = (1 << 20), cib_inhibit_bcast = (1 << 24), cib_force_diff = (1 << 28) }

Detailed Description

Data types for Cluster Information Base access.

Definition in file cib_types.h.

Typedef Documentation

◆ cib_api_operations_t

typedef struct cib_api_operations_s cib_api_operations_t

◆ cib_t

typedef struct cib_s cib_t

Definition at line 155 of file cib_types.h.

Enumeration Type Documentation

◆ cib_call_options

enum cib_call_options

Enumerator
cib_none
cib_verbose	Prefer stderr to logs.
cib_xpath
cib_multiple
cib_can_create
cib_discard_reply
cib_no_children
cib_xpath_address
cib_mixed_update	Deprecated: This value will be removed in a future release
cib_scope_local	Deprecated: This value will be removed in a future release
cib_dryrun
cib_transaction	Process request when the client commits the active transaction. Add the request to the client's active transaction instead of processing it immediately. If the client has no active transaction, or if the request is not supported in transactions, the call will fail. The request is added to the transaction synchronously, and the return value indicates whether it was added successfully. Refer to `cib_api_operations_t:init_transaction()` and `cib_api_operations_t:end_transaction()` for more details on CIB transactions.
cib_score_update	Treat new attribute values as atomic score updates where possible. This option takes effect when updating XML attributes. For an attribute named `"name"`, if the new value is `"name++"` or `"name+=X"` for some score `X`, the new value is set as follows: If attribute `"name"` is not already set to some value in the element being updated, the new value is set as a literal string. If the new value is `"name++"`, then the attribute is set to its existing value (parsed as a score) plus 1. If the new value is `"name+=X"` for some score `X`, then the attribute is set to its existing value plus `X`, where the existing value and `X` are parsed and added as scores. Scores are integer values capped at `INFINITY` and `-INFINITY`. Refer to Pacemaker Explained and to the `char2score()` function for more details on scores, including how they're parsed and added. Note: This is implemented only for modify operations.
cib_sync_call
cib_no_mtime
cib_zero_copy	Deprecated: This value will be removed in a future release
cib_inhibit_notify
cib_quorum_override	Deprecated: This value will be removed in a future release
cib_inhibit_bcast	Deprecated: This value will be removed in a future release
cib_force_diff
