Data types for Cluster Information Base access. More...

#include <glib.h>
#include <libxml/tree.h>
#include <crm/common/ipc.h>
#include <crm/common/xml.h>

Include dependency graph for cib_types.h:

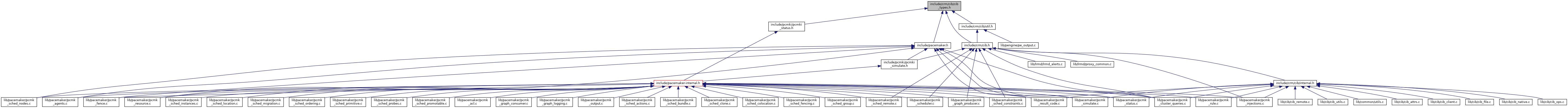

This graph shows which files directly or indirectly include this file:

Typedefs
typedef struct cib_s	cib_t

typedef struct cib_api_operations_s	cib_api_operations_t

Enumerations
enum	cib_variant { cib_undefined = 0, cib_native = 1, cib_file = 2, cib_remote = 3, cib_database = 4 }

enum	cib_state { cib_connected_command, cib_connected_query, cib_disconnected }

enum	cib_conn_type { cib_command, cib_query, cib_no_connection, cib_command_nonblocking }

enum	cib_call_options { cib_none = 0, cib_verbose = (1 << 0), cib_xpath = (1 << 1), cib_multiple = (1 << 2), cib_can_create = (1 << 3), cib_discard_reply = (1 << 4), cib_no_children = (1 << 5), cib_xpath_address = (1 << 6), cib_mixed_update = (1 << 7), cib_scope_local = (1 << 8), cib_dryrun = (1 << 9), cib_transaction = (1 << 10), cib_sync_call = (1 << 12), cib_no_mtime = (1 << 13), cib_zero_copy = (1 << 14), cib_inhibit_notify = (1 << 16), cib_quorum_override = (1 << 20), cib_inhibit_bcast = (1 << 24), cib_force_diff = (1 << 28) }

Detailed Description

Data types for Cluster Information Base access.

Definition in file cib_types.h.

Typedef Documentation

typedef struct cib_s cib_t

Definition at line 123 of file cib_types.h.

Enumerator
cib_none
cib_verbose	Prefer stderr to logs.
cib_xpath
cib_multiple
cib_can_create
cib_discard_reply
cib_no_children
cib_xpath_address
cib_mixed_update	Deprecated: This value will be removed in a future release
cib_scope_local	Deprecated: This value will be removed in a future release
cib_dryrun
cib_transaction	Process request when the client commits the active transaction. Add the request to the client's active transaction instead of processing it immediately. If the client has no active transaction, or if the request is not supported in transactions, the call will fail. The request is added to the transaction synchronously, and the return value indicates whether it was added successfully. Refer to `cib_api_operations_t:init_transaction()` and `cib_api_operations_t:end_transaction()` for more details on CIB transactions.
cib_sync_call
cib_no_mtime
cib_zero_copy	Deprecated: This value will be removed in a future release
cib_inhibit_notify
cib_quorum_override	Deprecated: This value will be removed in a future release
cib_inhibit_bcast	Deprecated: This value will be removed in a future release
cib_force_diff
