pcmki_transition.h File Reference

#include <stdbool.h>
#include <stdint.h>
#include <sys/types.h>
#include <glib.h>
#include <libxml/tree.h>
#include <crm/common/scheduler_types.h>
#include <crm/lrmd_events.h>

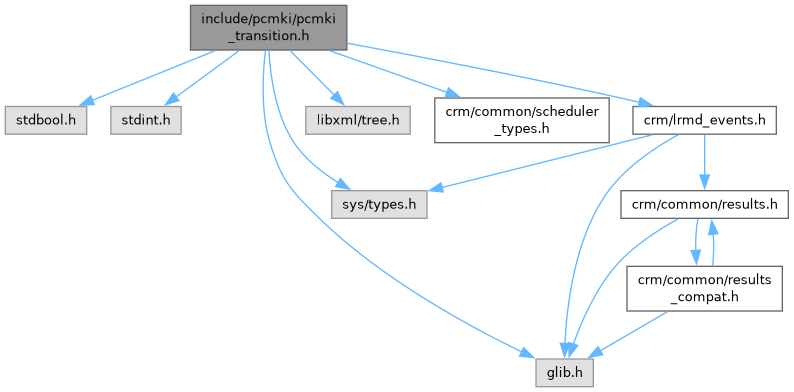

Include dependency graph for pcmki_transition.h:

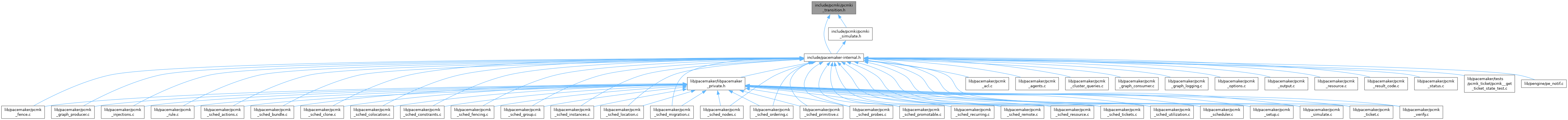

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	pcmk__graph_synapse_t
struct	pcmk__graph_action_t
struct	pcmk__graph_t
struct	pcmk__graph_functions_t

Macros
#define	pcmk__set_synapse_flags(synapse, flags_to_set)
#define	pcmk__clear_synapse_flags(synapse, flags_to_clear)
#define	pcmk__set_graph_action_flags(action, flags_to_set)
#define	pcmk__clear_graph_action_flags(action, flags_to_clear)

Enumerations
enum	pcmk__graph_action_type { pcmk__pseudo_graph_action , pcmk__rsc_graph_action , pcmk__cluster_graph_action }
enum	pcmk__synapse_flags { pcmk__synapse_ready = (1 << 0) , pcmk__synapse_failed = (1 << 1) , pcmk__synapse_executed = (1 << 2) , pcmk__synapse_confirmed = (1 << 3) }
enum	pcmk__graph_action_flags { pcmk__graph_action_sent_update = (1 << 0) , pcmk__graph_action_executed = (1 << 1) , pcmk__graph_action_confirmed = (1 << 2) , pcmk__graph_action_failed = (1 << 3) }
enum	pcmk__graph_next { pcmk__graph_done , pcmk__graph_wait , pcmk__graph_restart , pcmk__graph_shutdown }
enum	pcmk__graph_status { pcmk__graph_active , pcmk__graph_pending , pcmk__graph_complete , pcmk__graph_terminated }

Functions
void	pcmk__set_graph_functions (pcmk__graph_functions_t *fns)
pcmk__graph_t *	pcmk__unpack_graph (const xmlNode *xml_graph, const char *reference)
enum pcmk__graph_status	pcmk__execute_graph (pcmk__graph_t *graph)
void	pcmk__update_graph (pcmk__graph_t *graph, const pcmk__graph_action_t *action)
void	pcmk__free_graph (pcmk__graph_t *graph)
const char *	pcmk__graph_status2text (enum pcmk__graph_status state)
void	pcmk__log_graph (unsigned int log_level, pcmk__graph_t *graph)
void	pcmk__log_graph_action (int log_level, pcmk__graph_action_t *action)
void	pcmk__log_transition_summary (const pcmk_scheduler_t *scheduler, const char *filename)
lrmd_event_data_t *	pcmk__event_from_graph_action (const xmlNode *resource, const pcmk__graph_action_t *action, int status, int rc, const char *exit_reason)

Macro Definition Documentation

pcmk__clear_graph_action_flags

#define pcmk__clear_graph_action_flags	(		action,
			flags_to_clear )

Value:

        do {   \
        (action)->flags = pcmk__clear_flags_as(__func__, __LINE__,    \
            LOG_TRACE,                                                \
            "Action", "action",                                       \
            (action)->flags, (flags_to_clear), #flags_to_clear);      \
    } while (0)

Definition at line 96 of file pcmki_transition.h.

pcmk__clear_synapse_flags

#define pcmk__clear_synapse_flags	(		synapse,
			flags_to_clear )

Value:

        do {         \
        (synapse)->flags = pcmk__clear_flags_as(__func__, __LINE__,     \
            LOG_TRACE,                                                  \
            "Synapse", "synapse",                      \
            (synapse)->flags, (flags_to_clear), #flags_to_clear);       \
    } while (0)

Definition at line 60 of file pcmki_transition.h.

pcmk__set_graph_action_flags

#define pcmk__set_graph_action_flags	(		action,
			flags_to_set )

Value:

        do {       \
        (action)->flags = pcmk__set_flags_as(__func__, __LINE__,      \
            LOG_TRACE,                                                \
            "Action", "action",                                       \
            (action)->flags, (flags_to_set), #flags_to_set);          \
    } while (0)

Definition at line 89 of file pcmki_transition.h.

pcmk__set_synapse_flags

#define pcmk__set_synapse_flags	(		synapse,
			flags_to_set )

Value:

        do {             \
        (synapse)->flags = pcmk__set_flags_as(__func__, __LINE__,       \
            LOG_TRACE,                                                  \
            "Synapse", "synapse",                       \
            (synapse)->flags, (flags_to_set), #flags_to_set);           \
    } while (0)

Definition at line 53 of file pcmki_transition.h.

Enumeration Type Documentation

pcmk__graph_action_flags

enum pcmk__graph_action_flags

Enumerator
pcmk__graph_action_sent_update
pcmk__graph_action_executed
pcmk__graph_action_confirmed
pcmk__graph_action_failed

Definition at line 67 of file pcmki_transition.h.

pcmk__graph_action_type

enum pcmk__graph_action_type

Enumerator
pcmk__pseudo_graph_action
pcmk__rsc_graph_action
pcmk__cluster_graph_action

Definition at line 26 of file pcmki_transition.h.

pcmk__graph_next

enum pcmk__graph_next

Enumerator
pcmk__graph_done
pcmk__graph_wait
pcmk__graph_restart
pcmk__graph_shutdown

Definition at line 104 of file pcmki_transition.h.

pcmk__graph_status

enum pcmk__graph_status

Enumerator
pcmk__graph_active
pcmk__graph_pending
pcmk__graph_complete
pcmk__graph_terminated

Definition at line 157 of file pcmki_transition.h.

pcmk__synapse_flags

enum pcmk__synapse_flags

Enumerator
pcmk__synapse_ready
pcmk__synapse_failed
pcmk__synapse_executed
pcmk__synapse_confirmed

Definition at line 36 of file pcmki_transition.h.

Function Documentation

pcmk__event_from_graph_action()

lrmd_event_data_t * pcmk__event_from_graph_action	(	const xmlNode *	resource,
		const pcmk__graph_action_t *	action,
		int	status,
		int	rc,
		const char *	exit_reason )

Definition at line 823 of file pcmk_graph_consumer.c.

pcmk__execute_graph()

enum pcmk__graph_status pcmk__execute_graph

(

pcmk__graph_t *

graph

)

Definition at line 414 of file pcmk_graph_consumer.c.

pcmk__free_graph()

void pcmk__free_graph

(

pcmk__graph_t *

graph

)

Definition at line 71 of file pcmk_graph_consumer.c.

pcmk__graph_status2text()

const char * pcmk__graph_status2text

(

enum pcmk__graph_status

state

)

Definition at line 25 of file pcmk_graph_logging.c.

pcmk__log_graph()

void pcmk__log_graph	(	unsigned int	log_level,
		pcmk__graph_t *	graph )

Definition at line 213 of file pcmk_graph_logging.c.

pcmk__log_graph_action()

void pcmk__log_graph_action	(	int	log_level,
		pcmk__graph_action_t *	action )

Definition at line 207 of file pcmk_graph_logging.c.

pcmk__log_transition_summary()

void pcmk__log_transition_summary	(	const pcmk_scheduler_t *	scheduler,
		const char *	filename )

Definition at line 943 of file pcmk_graph_producer.c.

pcmk__set_graph_functions()

void pcmk__set_graph_functions

(

pcmk__graph_functions_t *

fns

)

Definition at line 213 of file pcmk_graph_consumer.c.

pcmk__unpack_graph()

pcmk__graph_t * pcmk__unpack_graph	(	const xmlNode *	xml_graph,
		const char *	reference )

Definition at line 723 of file pcmk_graph_consumer.c.

pcmk__update_graph()

void pcmk__update_graph	(	pcmk__graph_t *	graph,
		const pcmk__graph_action_t *	action )

Definition at line 176 of file pcmk_graph_consumer.c.
