action_relation_internal.h File Reference

#include <stdbool.h>
#include <stdint.h>
#include <glib.h>
#include <crm/common/scheduler_types.h>

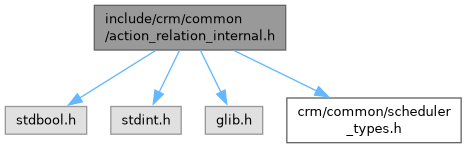

Include dependency graph for action_relation_internal.h:

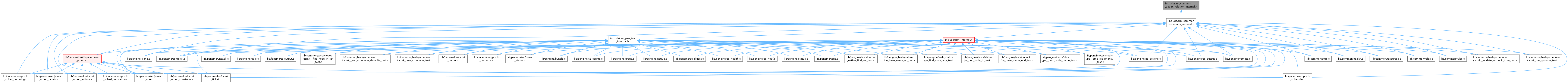

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	pcmk__action_relation_t
struct	pcmk__related_action

Macros
#define	pcmk__set_relation_flags(ar_flags, flags_to_set)
#define	pcmk__clear_relation_flags(ar_flags, flags_to_clear)

Typedefs
typedef struct pcmk__related_action	pcmk__related_action_t

Enumerations
enum	pcmk__action_relation_flags {   pcmk__ar_none = 0U , pcmk__ar_ordered = (1U << 0) , pcmk__ar_if_first_unmigratable = (1U << 1) , pcmk__ar_then_implies_first = (1U << 4) ,   pcmk__ar_first_implies_then = (1U << 5) , pcmk__ar_promoted_then_implies_first = (1U << 6) , pcmk__ar_unmigratable_then_blocks = (1U << 7) , pcmk__ar_unrunnable_first_blocks = (1U << 8) ,   pcmk__ar_first_else_then = (1U << 9) , pcmk__ar_first_implies_same_node_then = (1U << 10) , pcmk__ar_nested_remote_probe = (1U << 11) , pcmk__ar_intermediate_stop = (1U << 12) ,   pcmk__ar_serialize = (1U << 14) , pcmk__ar_if_on_same_node = (1U << 15) , pcmk__ar_then_implies_first_graphed = (1U << 16) , pcmk__ar_first_implies_then_graphed = (1U << 17) ,   pcmk__ar_asymmetric = (1U << 20) , pcmk__ar_if_on_same_node_or_target = (1U << 21) , pcmk__ar_min_runnable = (1U << 22) , pcmk__ar_if_required_on_same_node = (1U << 23) ,   pcmk__ar_guest_allowed = (1U << 24) , pcmk__ar_then_cancels_first = (1U << 25) }

Functions
void	pcmk__free_action_relation (gpointer user_data)

Macro Definition Documentation

pcmk__clear_relation_flags

#define pcmk__clear_relation_flags	(		ar_flags,
			flags_to_clear )

Value:

        do {           \
        ar_flags = pcmk__clear_flags_as(__func__, __LINE__, LOG_TRACE,      \
                                        "Action relation", "constraint",    \
                                        ar_flags, (flags_to_clear),         \
                                        #flags_to_clear);                   \
    } while (0)

Definition at line 178 of file action_relation_internal.h.

pcmk__set_relation_flags

#define pcmk__set_relation_flags	(		ar_flags,
			flags_to_set )

Value:

        do {           \
        ar_flags = pcmk__set_flags_as(__func__, __LINE__, LOG_TRACE,    \
                                      "Action relation", "constraint",  \
                                      ar_flags, (flags_to_set),         \
                                      #flags_to_set);                   \
    } while (0)

Definition at line 164 of file action_relation_internal.h.

Typedef Documentation

pcmk__related_action_t

typedef struct pcmk__related_action pcmk__related_action_t

Enumeration Type Documentation

pcmk__action_relation_flags

enum pcmk__action_relation_flags

Enumerator
pcmk__ar_none	No relation (compare with equality rather than bit set)
pcmk__ar_ordered	Actions are ordered (optionally, if no other flags are set)
pcmk__ar_if_first_unmigratable	Relation applies only if 'first' cannot be part of a live migration.
pcmk__ar_then_implies_first	If 'then' is required, 'first' becomes required (and becomes unmigratable if 'then' is); also, if 'first' is a stop of a blocked resource, 'then' becomes unrunnable
pcmk__ar_first_implies_then	If 'first' is required, 'then' becomes required; if 'first' is a stop of a blocked resource, 'then' becomes unrunnable
pcmk__ar_promoted_then_implies_first	If 'then' is required and for a promoted instance, 'first' becomes required (and becomes unmigratable if 'then' is)
pcmk__ar_unmigratable_then_blocks	'first' is runnable only if 'then' is both runnable and migratable, and 'first' becomes required if 'then' is
pcmk__ar_unrunnable_first_blocks	'then' is runnable (and migratable) only if 'first' is runnable
pcmk__ar_first_else_then	If 'first' is unrunnable, 'then' becomes a real, unmigratable action.
pcmk__ar_first_implies_same_node_then	If 'first' is required, 'then' action for instance on same node is.
pcmk__ar_nested_remote_probe	Disable relation if 'first' is unrunnable and for an active resource, otherwise order actions and make 'then' unrunnable if 'first' is. This is used to order a bundle replica's start of its container before a probe of its remote connection resource, in case the connection uses the REMOTE_CONTAINER_HACK to replace the connection address with where the container is running.
pcmk__ar_intermediate_stop	If 'first' is for a blocked resource, make 'then' unrunnable. If 'then' is required, make 'first' required, make 'first' unmigratable if 'then' is unmigratable, and make 'then' unrunnable if 'first' is unrunnable. If 'then' is unrunnable and for the same resource as 'first', make 'first' required if it is runnable, and make 'first' unmigratable if 'then' is unmigratable. This is used for "stop then start primitive" (restarts) and "stop group member then stop previous member".
pcmk__ar_serialize	The actions must be serialized if in the same transition but can be in either order. (In practice, we always arrange them as 'first' then 'then', so they end up being essentially the same as optional orderings.) @TODO Handle more intelligently – for example, we could schedule the action with the fewest inputs first, so we're more likely to execute at least one if there is a failure during the transition. Or, we could prefer certain action types over others, or base it on resource priority.
pcmk__ar_if_on_same_node	Relation applies only if actions are on same node.
pcmk__ar_then_implies_first_graphed	If 'then' is required, 'first' must be added to the transition graph.
pcmk__ar_first_implies_then_graphed	If 'first' is required and runnable, 'then' must be in graph.
pcmk__ar_asymmetric	User-configured asymmetric ordering.
pcmk__ar_if_on_same_node_or_target	Actions are ordered if on same node (or migration target for migrate_to)
pcmk__ar_min_runnable	'then' action is runnable if certain number of 'first' instances are
pcmk__ar_if_required_on_same_node	Ordering applies only if 'first' is required and on same node as 'then'.
pcmk__ar_guest_allowed	Ordering applies even if 'first' runs on guest node created by 'then'.
pcmk__ar_then_cancels_first	If 'then' action becomes required, 'first' becomes optional.

Definition at line 23 of file action_relation_internal.h.

Function Documentation

pcmk__free_action_relation()

void pcmk__free_action_relation

(

gpointer

user_data

)

Definition at line 24 of file action_relation.c.
